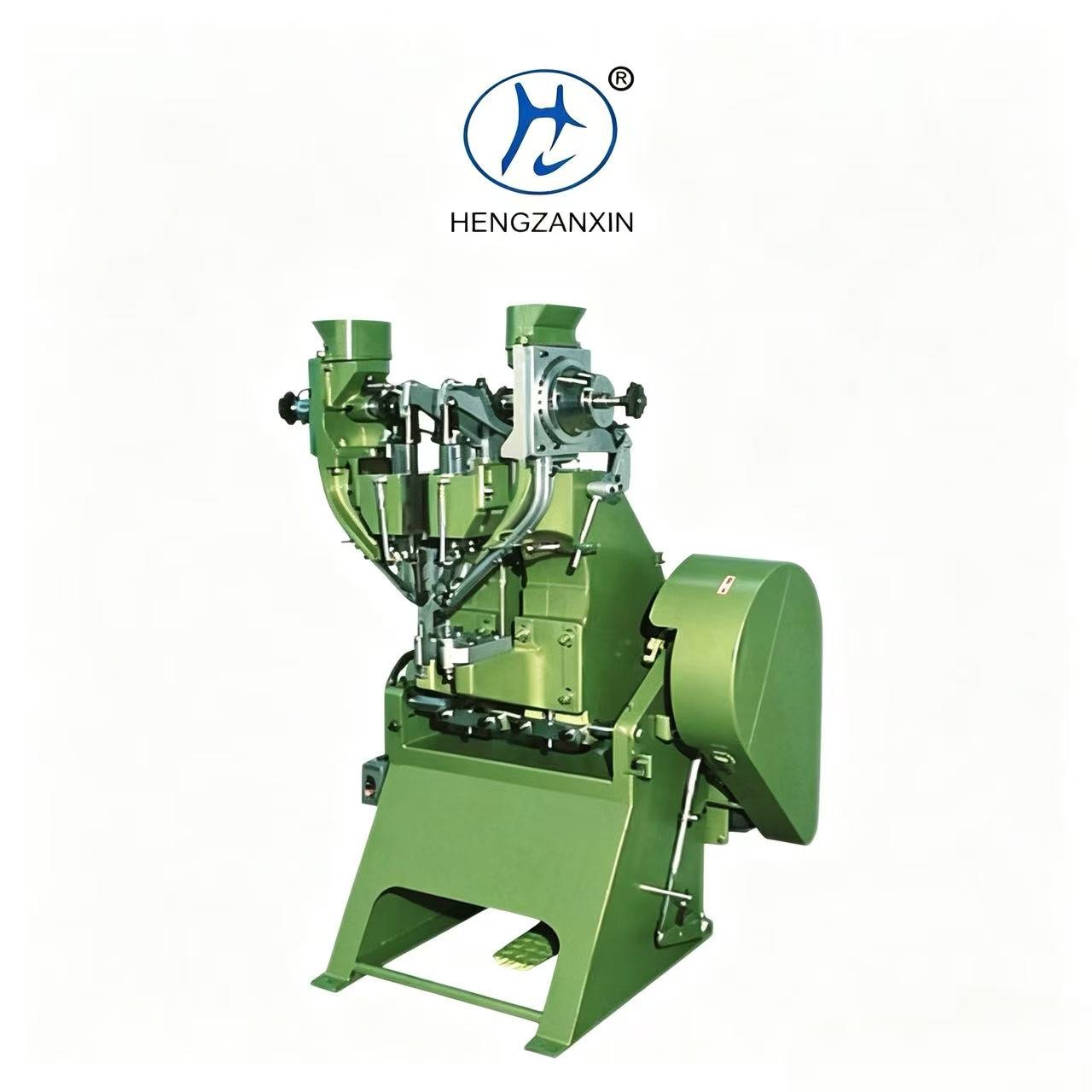

HZX-R250SA Heavy Duty Automatic Twin Riveting Machine
Why Choose Our Twin Riveting System?
- Simultaneous Efficiency: Dual-head design sets two rivets simultaneously, doubling production speed for parallel riveting tasks.
- Flexible Center Distance: Twin head distance is precision-adjustable from 17mm to 150mm to fit various product dimensions.
- Optimized for Fasteners: Flawlessly feeds and rivets standard semi-tubular rivets and heavy-duty male rivets without deformation.
- Deep Throat Capability: Engineered with a 250mm throat depth to accommodate larger workpieces and wider application scenarios.
Description
Key Features & Structural Advantages
-
High-Rigidity Mechanical Chassis: Built with heavy-duty cast iron elements to suppress vibration during high-speed clamping, ensuring an ultra-extended machine life.
-
Precision Dual Automatic Feeders: Dual independent hopper tracks automatically feed semi-tubular or male rivets aligned perfectly, preventing jamming and reducing operator fatigue.
-
Tailored R&D Tooling Solution: Our expert in-house engineering team customizes the upper and lower riveting molds based on your unique non-standard rivets, securing a seamless, scratch-free finish.
Technical Specifications
| Technical Specifications | Parameters & Data |
|---|---|
| Model Number | HZX-R250SA |
| Rivet Tube Diameter Cap. | Ø 2.50 – 5.00 mm |
| Rivet Length Range | 3 – 18 mm |
| Twin Head Center Distance | 17 – 150 mm (Adjustable) |
| Throat Depth | 250 mm |
| Motor Power | 1/2 HP |
| Riveting Height (Floor to Holder) | 850 mm |
| Machine Dimensions (L*W*H) | 850 * 965 * 1480 mm |
| Net Weight | 420 kgs |
| Gross Weight | 500 kgs |
| Application Note | Perfectly suitable for simultaneous twin-hole riveting processes. |
| Custom Tooling & Dies | The dimensions and profiles of the lower riveting dies are fully customized according to client-supplied rivet samples. |
Versatile Applications & Target Industries
Heavy-Duty Machinery Quality Guarantee
Source Factory Since 2006
As a direct manufacturing leader based in Dongguan City, we offer complete B2B industrial solutions. From customized automatic multi-head machinery to precision tooling, we ensure high-quality inquiries receive precise technical verification from our master technicians (shifu) before shipment.
