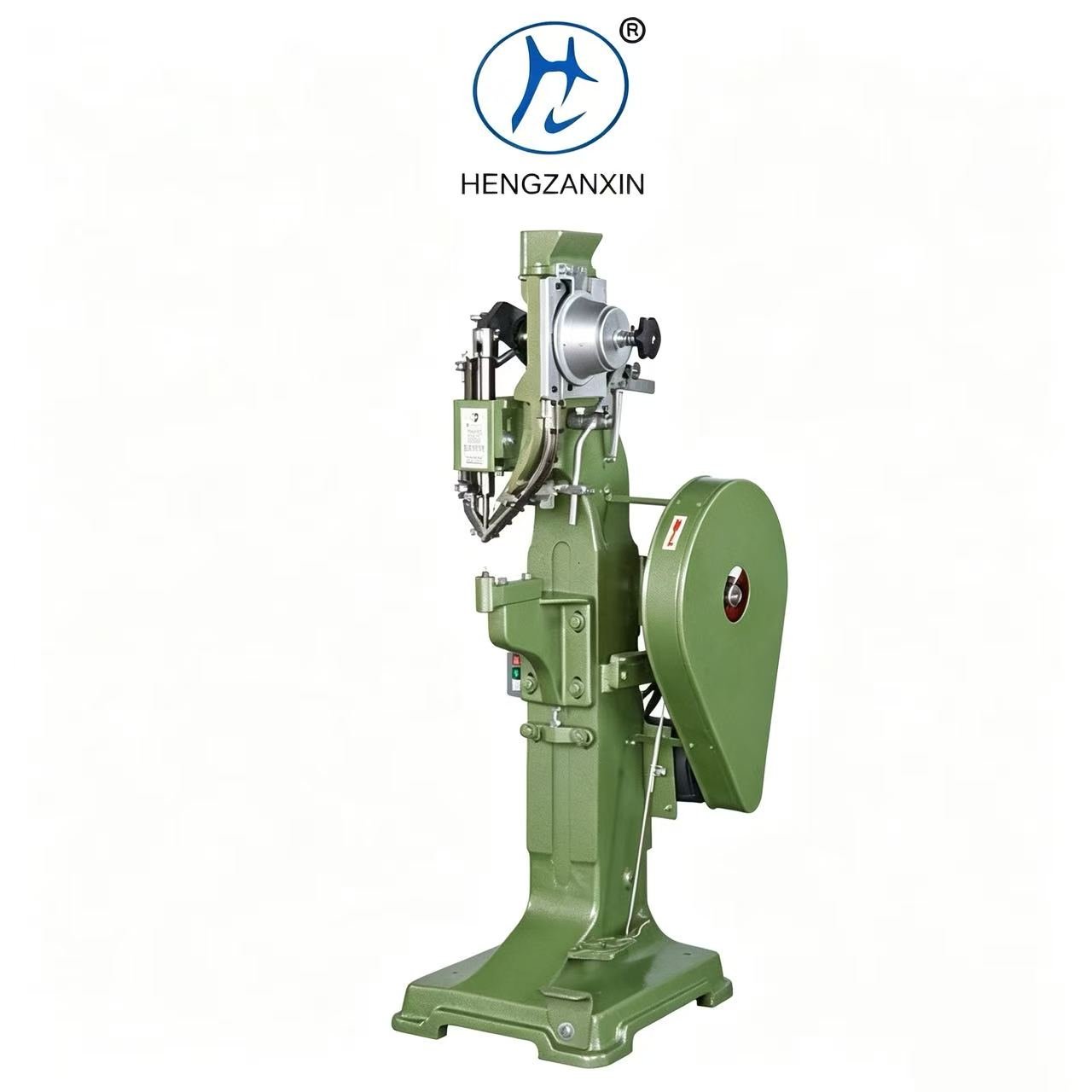

HZX-R4250A Automatic Hardware & Folding Chair Riveting Machine
Why Choose Hengzanxin?
- 20+ Years Source Factory | Supports Non-Standard Automated Customization
- Designed for Hardware Accessories: High efficiency for baby strollers and folding chairs
- High-Speed Automatic Feeding: Smooth mechanical delivery to reduce labor costs
- 1-Year Official Warranty & 24/7 Professional Technical Support Standing By
Description
Key Advantages & Factory Strength
- Stroller & Chair Manufacturing Expert: Specially optimized for large-scale riveting of baby strollers, folding chairs, and diverse hardware accessories.
- Automated Mechanical Feeding: Advanced feeding split-track channels rivets flawlessly to boost assembly-line speed.
- Compact & Heavy-Duty Frame: Rigid casting structures guarantee low vibration and maximum precision under continuous operational load.
Product Parameters
| Parameter | Specifications |
|---|---|
| Model | HZX-R04250A |
| Throat Depth | 250 mm |
| Rivet Tube Diameter | Φ 2.5 – 4 mm |
| Rivet Length | 3 – 20 mm |
| Motor Power | 1/4 HP |
| Height from Floor to Bottom Mold | 820 mm |
| Net Weight (N.W.) | 225 kgs |
| Gross Weight (G.W.) | 280 kgs |
| Machine Dimensions | 770 × 480 × 1400 mm |
Wide Range of Applications
- Hardware Accessories: Perfect for high-volume automated riveting of baby strollers, folding chairs, and leisure lawn seats.
- Daily Hardware Fastening: Ideal for similar standard tube riveted hardware frames and stamping parts.
Factory Display & Qualification Certifications
