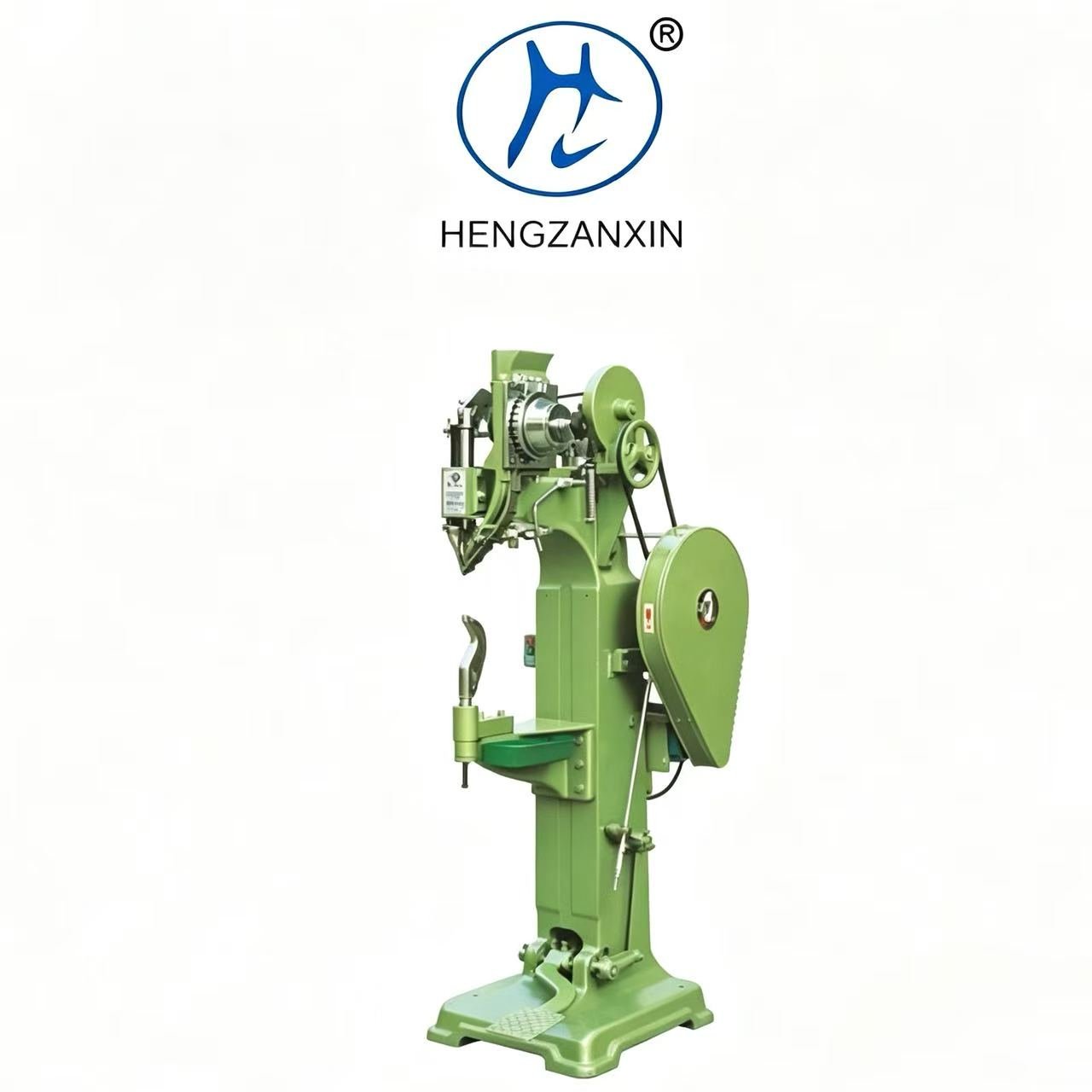

HZX-R5400SP Automatic Roller Skate Base & Sole Riveting Machine
Why Choose Hengzanxin?
- 20+ Years Source Factory | Supports Non-Standard Automated Customization
- Roller Skate Base Expert: Engineered specifically for automated riveting of skate soles and frames
- Heavy-Duty 400mm Throat Depth: Provides a massive working space for effortless component handling
- 1-Year Official Warranty & 24/7 Professional Technical Support Standing By
Description
Key Advantages & Factory Strength
- Skate Sole & Base Specialist: Custom-engineered for fast-paced, high-volume automated riveting of roller skate outsoles, bases, and sporting gear chassis.
- Massive 400mm Deep Throat: Provides exceptional material steering clearance, ensuring high efficiency for larger workpieces.
- Heavy Mechanical Linkage: Powered by a robust 1/2 HP motor system to maintain perfect punching power and continuous loading speed.
Product Parameters
| Parameter | Specifications |
|---|---|
| Model | HZX-R5400SP |
| Throat Depth | 400 mm |
| Rivet Face Diameter | Φ 8 mm |
| Rivet Tube Diameter | Φ 3 – 5 mm |
| Rivet Length | 5 – 25 mm |
| Motor Power | 1/2 HP |
| Height from Floor to Bottom Mold | 1100 mm |
| Net Weight (N.W.) | 320 kgs |
| Gross Weight (G.W.) | 370 kgs |
| Machine Dimensions | 860 × 550 × 1700 mm |
Wide Range of Applications
- Sporting Gear & Footwear: Specially optimized for high-volume manufacturing of roller skate plastic bases, ice skate soles, and heavy sports boots.
- Thick Component Fastening: Highly effective for automated hardware riveting where deep throat clearance and extended rivet length (up to 25mm) are required.
Factory Display & Qualification Certifications
